ONLY FOR TWINKLY ETHERNET CONTROLLERS (PRO, PLUS, LIGHTWALL)

Managing Installations

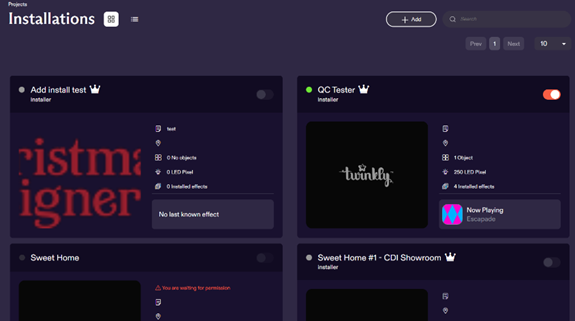

Click on Projects, then Installations to manage your installations, including any you have been invited to.

At the top center of the screen, toggle between two view modes:

• Expanded View: Provides a detailed overview of each installation.
• Table View: Offers a compact, list-based format.

Both views display the installation name, an on/off toggle, current mode and effect, and a count of objects, LEDs, and installed effects.

Tip: Click anywhere on the installation (except the toggle) to open its individual page.

In the top-right corner, you’ll find:

• + Add button: To create a new installation.
• Search Bar: To quickly find specific installations.
• Navigation Controls: To switch pages or set how many installations are shown.

Adding Installations

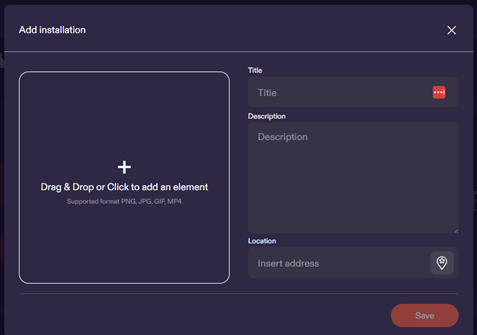

To add a new installation:

1. Click + Add in the Installations tab.
2. In the pop-up window, enter:
   • Title
   • Description
   • Location
   • Image (optional, for easier identification)

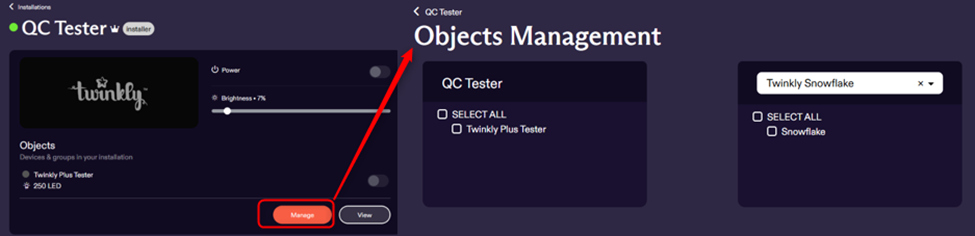

Note: New installations start without devices or objects. To add existing ones, open the installation, click Manage in the top-left pane, and select the source installation containing the object to be moved.

Managing Users

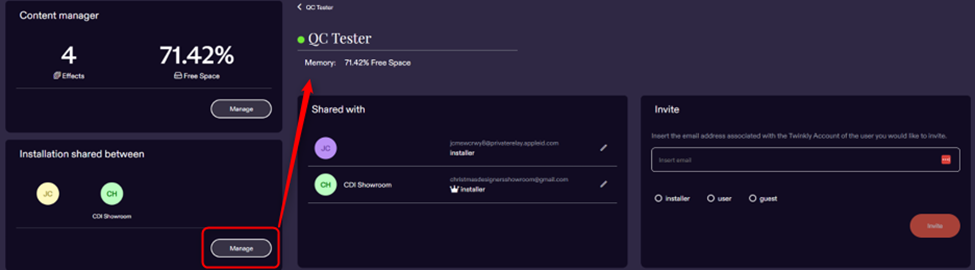

• From the installation’s page, scroll to the bottom-right and locate the Installation Shared Between section.
• Click Manage to open the users page. Here, you can:
• View user details
• Adjust permission levels (if you are the owner)
• Invite new users

Managing Objects

There are two ways to access an object’s individual page:

1. From the installation’s page, click the object’s name in the object list.

Caution: Clicking the device name will take you to the device page, not the object.

2. Alternatively, go to the sidebar, expand Projects, and click Objects.

• • This displays all objects sorted by installation.
  • Click on an object to open its management page.
